Bridge Cap Anchor for new construction
Bridge Cap Anchors
TOGE TSM BS
For new cap in-situ concrete
construction road bridges
The TOGE TSM BS bridge cap anchor is used in the new construction of bridge caps in in-situ concrete for road bridges. In combination with injection mortar it allows high load bearing in cracked and non-cracked concrete. The composite mortar seals the borehole during application, preventing water penetration. This TOGE bridge cap anchor is approved for concrete strength classes from C20/25 to C50/60.
- Authorized Approval
- Installation
- Force Transmission
- Proven Impermeability
Authorized Approval
Approved by building authorities as shear-connector.
Installation
Fast and safe installation.
Force Transmission
Transmission of forces in existing concrete by the undercutting technique in combination with chemical mortar.
Force transmission in new concrete via shear studs (hexagonal head or shear stud washer).
Proven Impermeability
Verification of the impermeability of the system without or after alternating load.
Headshapes and Materials
Which product is right for you?
Do you need support?
We will be happy to help!
Call us: +49 911 659 68-10
Approval | Installation Instructions | Technical Information
Approval
General type approval + General technical approval Z-21.1.1799
General type approval + General technical approval Z-21.8.1880
Base Material
Application in cracked and non-cracked concrete
of strength classes from C20/25 to C50/60.
This is how simple the installation works:
- Create borehole diameter.
- Thoroughly blow out the borehole.
- Brush the borehole 4x.
- Thoroughly clean borehole again.
- Discard three full strokes of composite mortar – then inject composite mortar.
- Screw in concrete screw.
- After reaching the screw-in depth, the composite mortar must emerge at the concrete surface.
Application Examples

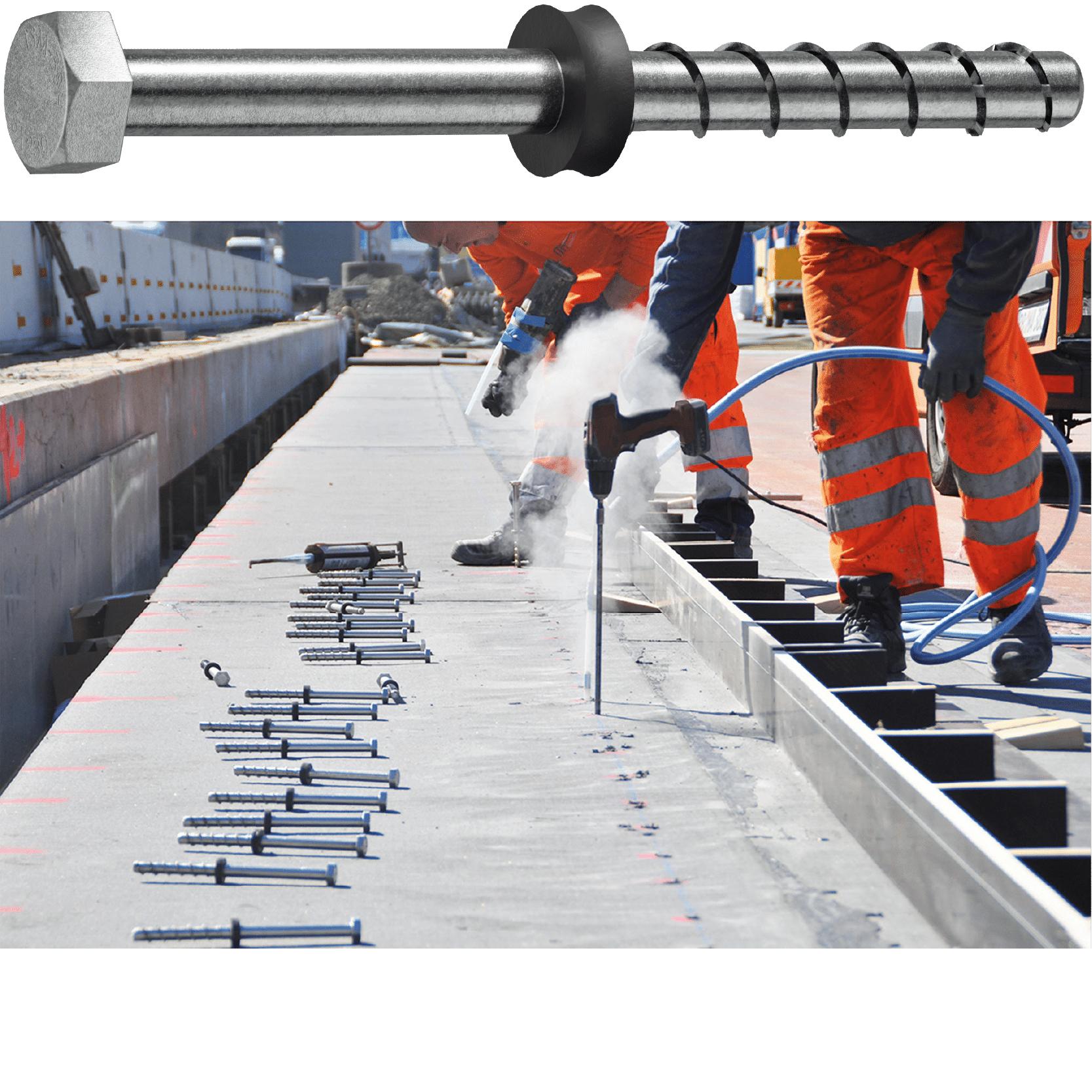

Fastening of new bridge caps
road bridges with the TOGE TSM BS 16
Detail
